TRIPOD, SKED-EVAC- Bag

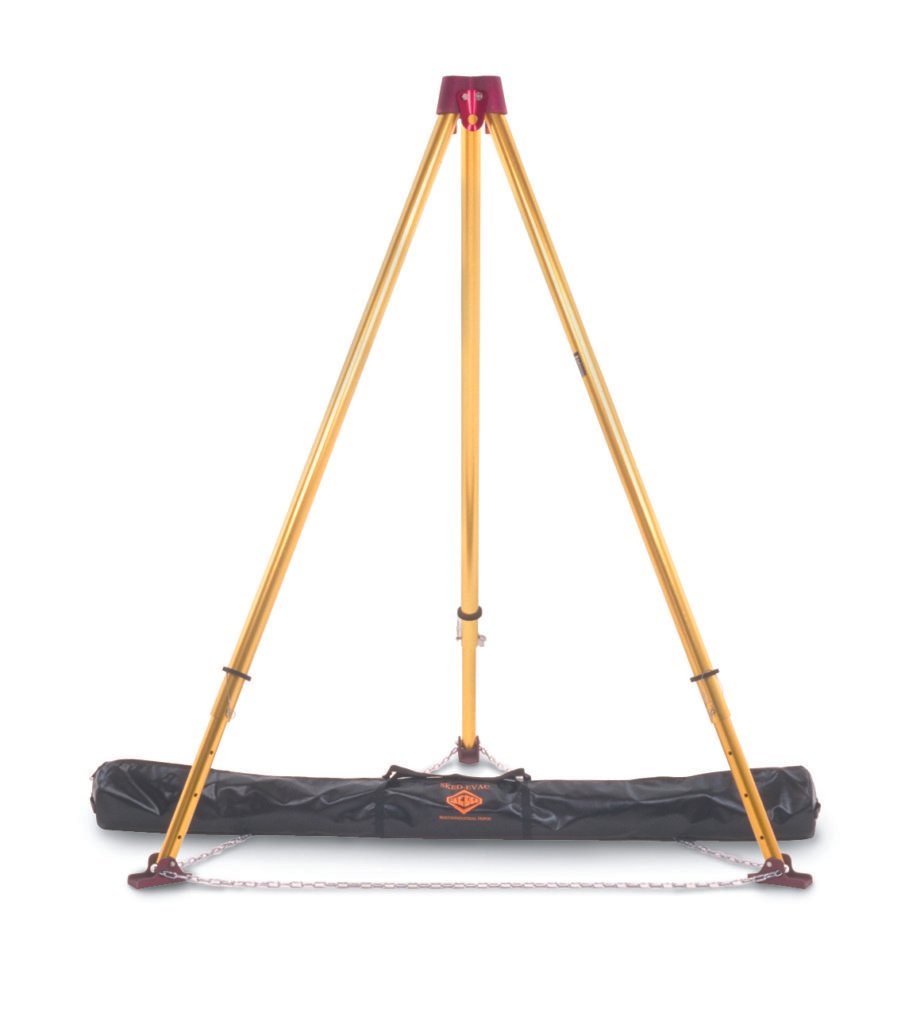

Manufactured by Skedco, makers of the Sked^® Stretcher, the Sked-EVAC tripod features aircraft-grade, gold-anodized aluminum legs and a cast-aluminum head. Three heavy-duty rigging anchors, located in the center, have exceptionally large holes for easy attachment. Legs adjust in 13 cm (5 in) increments for a max leg extension of 254 cm (100 in), a maximum height of 3 m (10 ft). Its minimum working height is 1.8 m (6 f)t and its minimum length for transport is 2.1 m (7 ft). The cast ladder feet swivel and come with a choice of a sure-grip rubber pad or a point for embedding in a soft or slippery surface. Holes in the feet allow the tripod to be bolted into position. A safety chain prevents leg movement and adjusts with a screw link. Carrying bag not included – sold separately.

Sked-EVAC Tripod Proof Loads

These proof loads are from independent, third-party testing and determine the repeatable load rating (not the ultimate breaking strength) for the Sked-EVAC Tripod.

Height / Strength

98 in (249 cm) / 42 kN (9,500 lbf)

102 in (259 cm) / 37 kN (8,500 lbf)

107 in (272 cm) / 33 kN (7,500 lbf)

112 in (284 cm) / 31 kN (7,000 lbf)

115 in (292 cm) / 26 kN (6,000 lbf)

119 in (302 cm) / 23 kN (5,280 lbf)
