WINCH NFPA LOKHEAD KIT, CMC

The LokHead is a proven high-load, low-friction winch that is an excellent choice for rescue operations and work at height. The LokHead can be used anywhere a load needs to be lifted or lowered. Rigged to a tripod, it can be used for confined-space rescue operations, for load moving/hauling, and personnel hoisting. The LokHead’s lightweight construction and ability to use an unlimited length of fiber rope make this self-tailing winch an ideal choice whether permanently mounted or used as a portable device. The ergonomic design reduces fatigue and optimizes operator strength, while safety features such as locking jaws protect against free fall or accidental release. The winch can be driven manually with the provided handle or with a compatible power drill.

The innovative LokHead Winch Kit (NFPA) meets the certification requirements of NFPA 2500 (1983), 2022 Edition “T” . The kit includes the LokHead winch with reversible plate, waterproof carrying case, winch handle, tripod adapter with counter plate, control lever, CMC Variable Anchor strap, and two CMC ProSeries carabiners. The strap and carabiners also meet NFPA standards. Perfect for fixed or temporary applications and rescue.  The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. The winch’s simple construction requires no lubrication and can be flushed clean with fresh water.

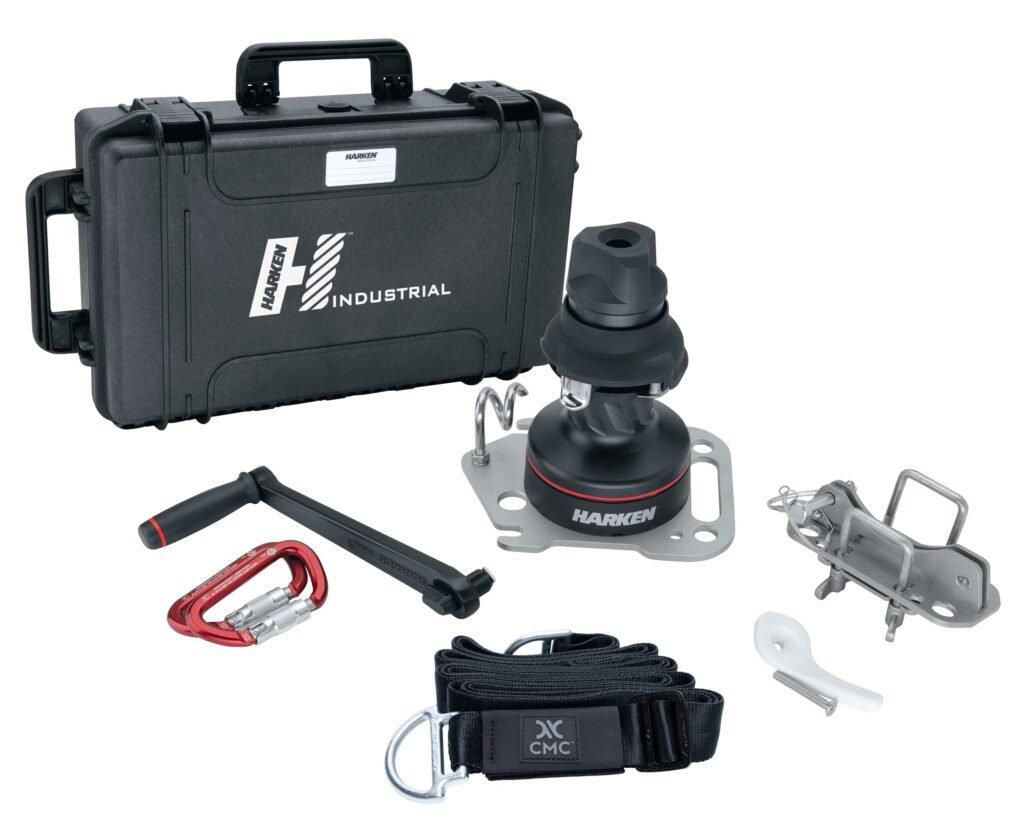

Kit Contents:

• Robust stainless steel mounting plate and hardware
• Tripod adapter
• Winch handle
• CMC adjustable strap
• CMC Auto-Lock Carabiners (2)
• Rugged, waterproof carry case

Features:

• CERTIFIED, SELF-TAILING, MAN-RIDING CAPSTAN WINCH WITH THE SECURITY AND SAFETY OF AN INNOVATIVE CAPTIVE HEAD
• Diverse applications – The LokHead Winch can be used anywhere a load needs to be lifted and lowered. Rigged to a tripod, like an Arizona Vortex, CMC Triskelion, or most other tripods available, it can be used for confined space rescue, for load moving and hauling, and man-riding
• Ergonomic – Easy to rig and efficient, makes the most of the operator’s effort. The winch offers a 40:1 power ratio with 2 gears: high-speed for light-loads and low-speed for heavy-loads
• Operation – Can be driven manually with the provided 25 cm (10″) winch handle or can be used with a power drill
• Reliable – The braking system provides descent control and worker protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch
• Versatile – Designed for use with life safety rope 10-12.7 mm (5/16-1/2 in) diameter and unlimited line length
• Maintenance is easy – Clean and grease regularly as described in the product manual
• Maximum Rated Load (MRL) – The max rated load is 500 kg (1,102 lb) for goods/equipment and 220 kg (485 lb) for live rescue loads
• Certifications – Meets NFPA Technical Use (“T” Rated), 11mm-12.5mm, MBS 22kN
• Drill-Powered Operation: May be used with a drill, Power Tool Adapter, and Protect-Connect for human suspension

Ratings:

• Maximum Rated Load (MRL) – Goods/Equipment: 500 kg (1,102 lb)
• Maximum Rated Load (MRL) – Live Rescue Loads: 220 kg (485 lb)
